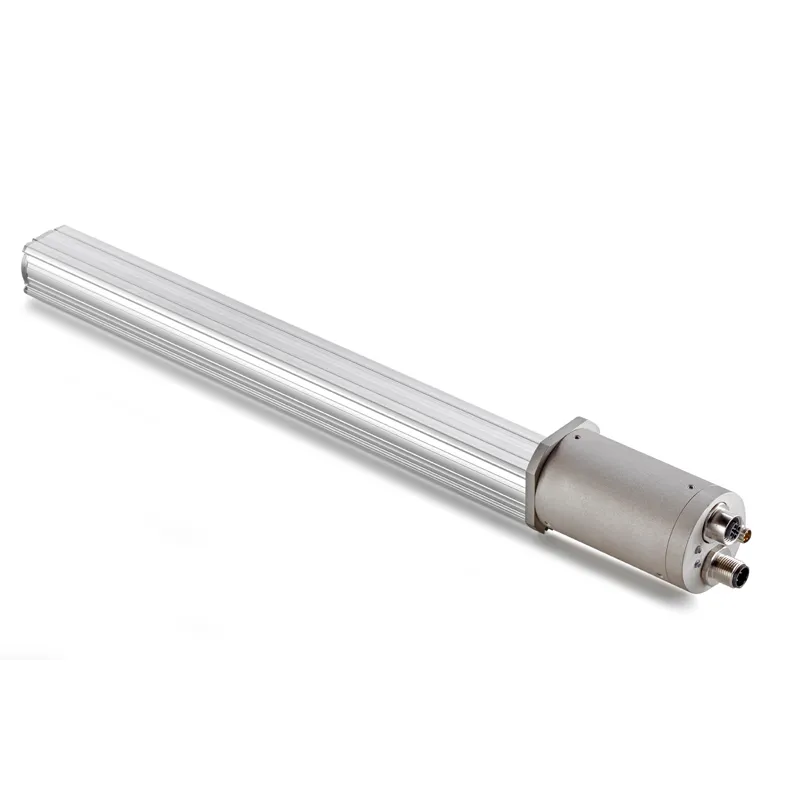

MK4-P Saída Digital ProfBus de perfil de alumínio de até 4 cursores
Contactless absolute linear position transducer with ONDA magnetostrictive technology.
The Profibus fieldbus interface integrates in complex systems with long communication distances, guaranteeing rapid and secure data transmission.
The absence of contact on the cursor eliminates all wear and ensures almost unlimited life of the transducer.
Its many advantages include smaller size for easier installation, high protection rating for use in harsh environments, excellent linearity, repeatability, and resistance to vibration and shock, guaranteeing exceptional reliability.
Stroke: 50 to 4000mm
Position resolution settable via software up to 1 μm
Speed resolution up to 0.25 mm/sec
Conforms to CE directives (EN 50081-1 50082-1)
Vibration-resistant (DIN IEC68T2/6 12 g)
IP67 protection rating
Controls up to four cursors simultaneously
Two M12 connectors for simplified connection to Profibus and one M8 connector for separate connection to power supply (transducer can be powered without having to be connected to bus)
Profibus DPV0 interface on RS485 in conformity to IEC 61158
